Frequency Range
45 MHz – 22.6 GHz
0.1 Hz resolution
Smart PLL Frequency Synthesizer
SSG4522ALX Smart PLL Frequency Synthesizer w/ Amplifier
45 MHz – 22.6 GHz | +18 dBm Pout | Phase noise -105 dBc/Hz @ 10 kHz (at 8 GHz)

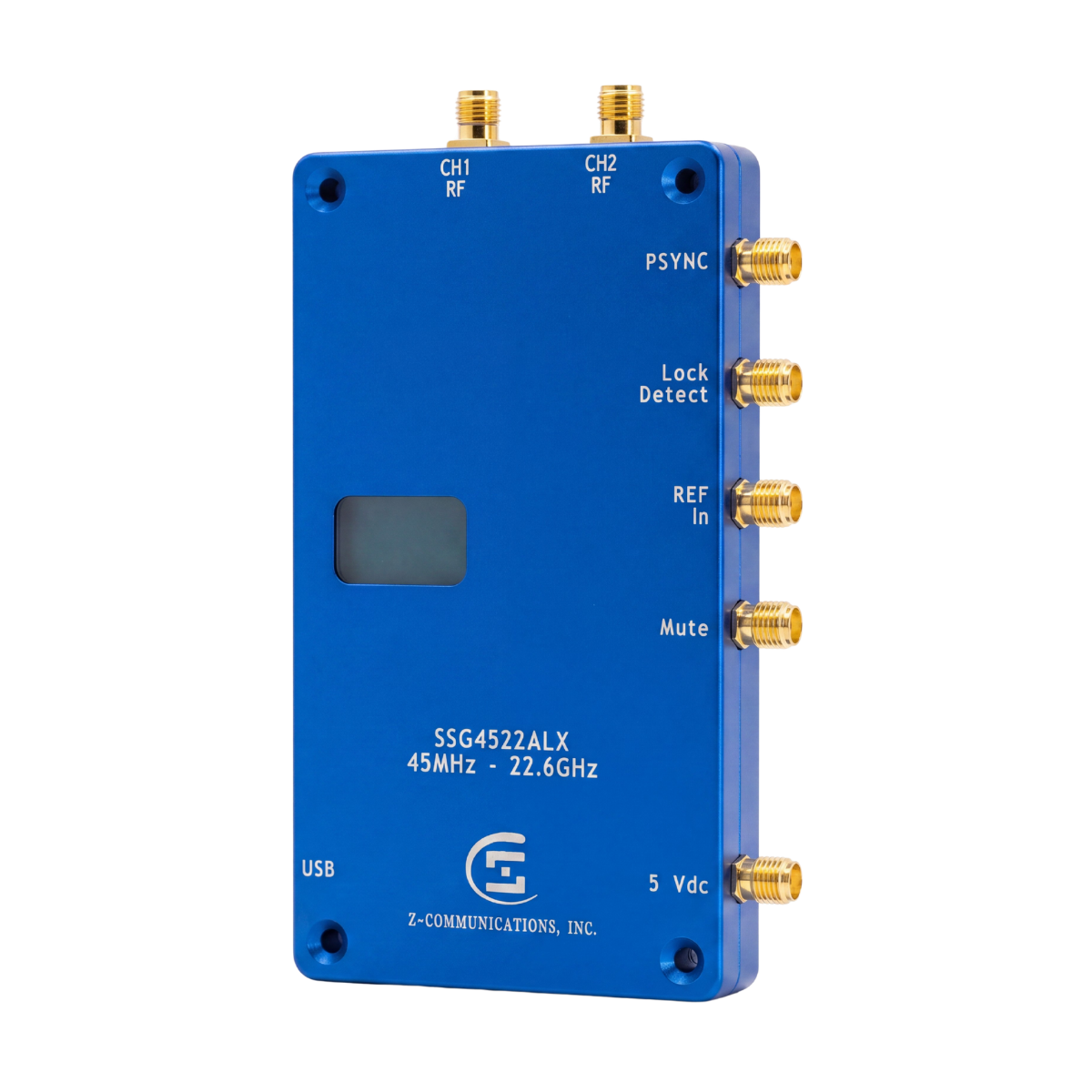

SSG4522ALX — dual-output Smart PLL in a compact, rugged all-metal enclosure for bench-top and in-field use.
One Instrument. 45 MHz to 22.6 GHz.
A stable, programmable RF source for the bench or field
The SSG4522ALX combines dual frequency outputs, an amplified main output, and 0.1 Hz resolution in a compact wideband synthesizer. Three sweep modes support frequency start and stop, step size, and dwell time control.
Use the internal 100 MHz reference for immediate setup, or connect an external 100 MHz reference. Program it from the Bluetooth mobile app, Windows over USB-C, or a UART command interface.
Price
$2,500.00
SSG4522ALX Rev A1
Output Power
+18 dBm typ
Amplified main output
Phase Noise
-105 dBc/Hz
@ 10 kHz offset (8 GHz)
Jitter
50 fs RMS
100 MHz external reference
Key Features & Benefits
- Cover 45 MHz to 22.6 GHz with 0.1 Hz resolution in one compact dual-wideband synthesizer.
- Drive test setups with two RF channel outputs and an amplified main output delivering +18 dBm typical power.
- Set CH 1 power with coarse programmable attenuation from 3 dB to 24 dB.
- Build single, repeat, or cycle sweeps with programmable start and stop frequencies, step size, and dwell time.
- Begin work immediately with the 100 MHz internal reference, or connect a preferred external 100 MHz reference.
- Power the all-metal unit from a single 5 Vdc supply through USB-C or SMA for bench-top or in-field use.
Target Applications
- Reference clocks, local oscillator
- Radar / Defense / SATCOM
- Test and measurement
- Field signal generator
Control & Software
Set your frequency from your phone, PC, or test program
Control the SSG4522ALX by Bluetooth with the iOS or Android Smart PLL app, from Windows through the USB-C power port, or by UART commands for LabVIEW and other programs.
iOS
Smart PLL for iOS
Set frequency and control the synthesizer over Bluetooth from the iOS Smart PLL app.
View iOS AppAndroid
Smart PLL for Android
Program the Smart PLL over Bluetooth from the Android Smart PLL app.
View Android AppWindows / UART
PC and Automation Control
Use the Windows controller over the USB-C power port, or drive UART commands from LabVIEW or other programs.
Download Windows ControllerPerformance
SSG4522ALX Specifications
Performance specifications from the SSG4522ALX Rev A1 datasheet.
| Parameter | Min. | Typ. | Max. | Units |
|---|---|---|---|---|
| Output frequency available range | 45 | — | 22600 | MHz |
| Power output, CH 1 (coarse 0–7 selectable attenuation) | 3 | 18 | 24 | dBm |
| Load impedance | — | 50 | — | Ω |
| Phase noise @ 8 GHz, 1 kHz offset | — | -101 | — | dBc/Hz |
| Phase noise @ 8 GHz, 10 kHz offset | — | -105 | — | dBc/Hz |
| Phase noise @ 8 GHz, 100 kHz offset | — | -109 | — | dBc/Hz |
| Phase noise @ 8 GHz, 1 MHz offset | — | -137 | — | dBc/Hz |
| Phase noise @ 8 GHz, 10 MHz offset | — | -147 | — | dBc/Hz |
| Harmonic suppression (2nd) | — | -20 | — | dBc |
| Spurious suppression | — | -65 | — | dBc |
| Lock detect output | — | 3.3 | — | V |
| Phase sync input (PSYNC) | — | 3.3 | — | V |
| Mute (-40 dB typ) | — | 3.3 | — | V |
| Power-up time | — | 15 | — | msec |
| Supply voltage (SMA / USB-C) | 5 | 5 | 6 | Vdc |
| Supply current | — | 800 | 1100 | mA |
| Operating temperature | -30 | — | +70 | °C |
| External reference input | — | 100 | — | MHz |
| Ref power level (peak-to-peak) | — | 2.5 | — | Vpp |
| Ref power level, recommended | 3 | 5 | 12 | dBm |
| Interface | UART USB-C / iOS, Android app |
Datasheet Notes
- RF CH2 is user-determined by multiplying or dividing internal VCO frequencies (selectable).
- RF CH1 coarse programmable attenuation 0–7; 7 = maximum power setting; 0 typically yields 10–14 dB attenuation. Ships set to 7.
- All phase-noise measurements performed with 100 MHz external reference; RMS jitter 50 fs. The datasheet includes phase-noise plots at 1, 3, 6, 9, 12, 15, 18, and 22 GHz.
Physical Dimensions
4.25" (108 mm) × 2.25" (57 mm) × 0.47" (11 mm), all-metal package.
Ready to put the SSG4522ALX on your bench?
Buy online for $2,500.00 or review the complete Rev A1 datasheet.
SSG4522ALX
One programmable source from 45 MHz to 22.6 GHz
Questions about your application? Email [email protected] or call (858) 621-2700.
