New Products
Discover the latest Smart PLL synthesizers and reference oscillators from Z-Communications.
New Smart PLL Frequency Synthesizer
SSG4522ATLX with Amplifier & Linear Attenuator
45 MHz to 22.6 GHz, dual RF outputs, and 0.1 Hz resolution. The new configurable linear attenuator provides 0–31.875 dB of attenuation in 0.125 dB steps, expanding on the SSG4522ALX's 3–24 dB range.
Typical phase noise is specified at -108 dBc/Hz at 8 GHz with a 10 kHz offset. The attenuator introduces an average 2 dB insertion loss relative to the base model.

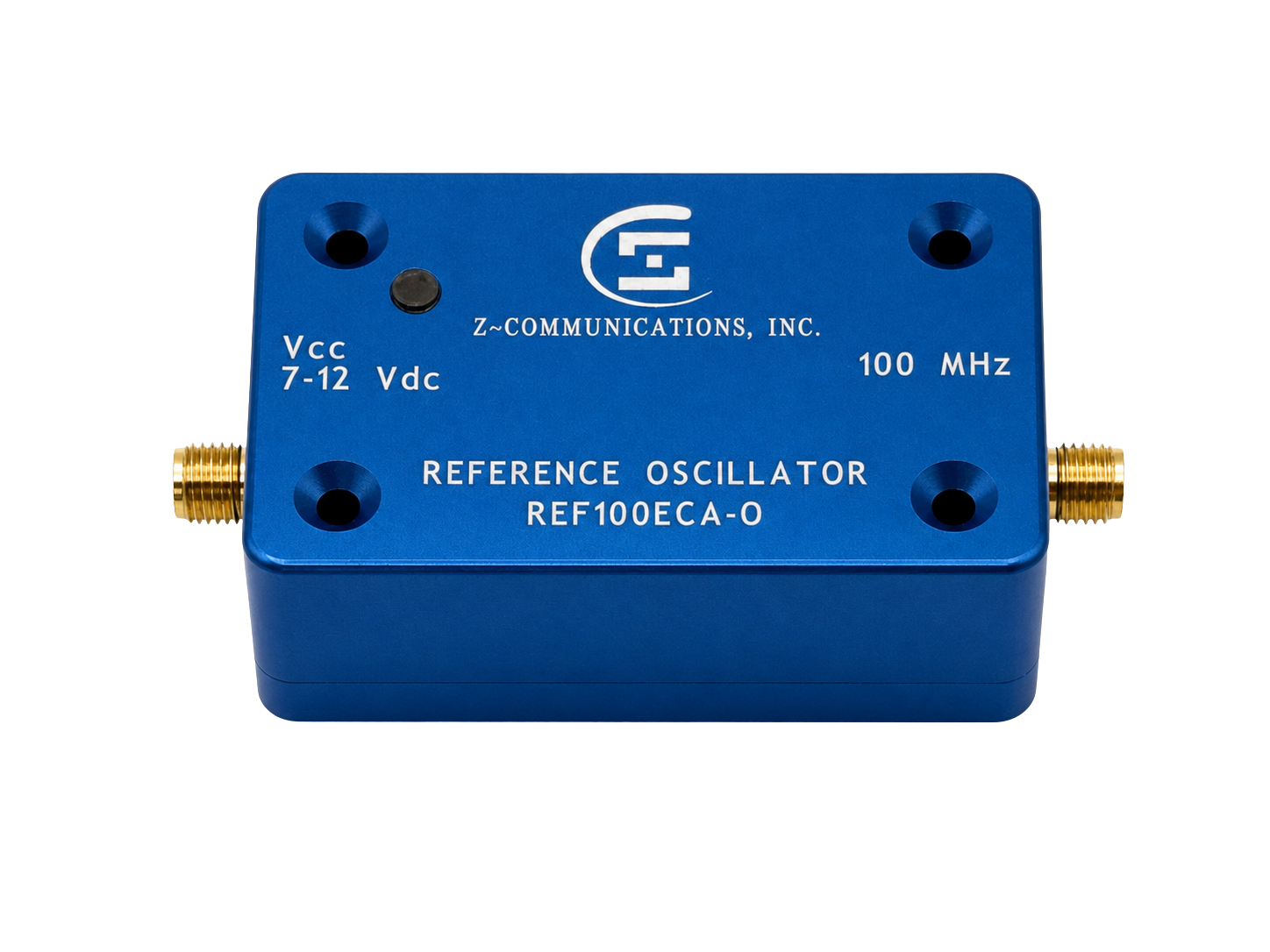

REF100ECA-O — 100 MHz OCXO reference in a rugged all-metal enclosure with SMA connectors.
Engineered for Signal Purity. Built for Extreme Environments.
REF100ECA-O 100 MHz OCXO Reference
The REF100ECA-O bridges the gap between delicate benchtop laboratory performance and rugged in-field reliability. This compact Oven Controlled Crystal Oscillator reference delivers exceptional phase noise performance and superior frequency stability for dependable reference signal generation.
Whether configuring advanced laboratory test systems or deploying demanding field applications, the REF100ECA-O delivers pristine signal purity without compromise.
Phase Noise
-156 dBc/Hz at 10 kHz offset
Noise Floor
-170 dBc/Hz at 1 MHz
Temperature Stability
+/-50 ppb from -40 C to +85 C
Key Features & Benefits
- Ultra-low phase noise profile for high-purity reference signals.
- Internal OCXO tested for shock and vibration compliance in demanding environments.
- Wide temperature stability across -40 C to +85 C operation.
- Rugged all-metal enclosure with 7 to 18 Vdc input and green LED status indicator.
- Typical acceleration sensitivity of 1.0 ppb/g for vibration-resistant operation.
Target Applications
- Phase locked loops (PLLs)
- Frequency synthesizers and function generators
- High-reliability test and measurement setups
- Demanding in-field system applications
